Deciphering the Connector Conundrum
1. Unraveling the Mystery of Connectors
Alright, so you're staring at a piece of equipment, a manual, or maybe just a tangled mess of wires and the burning question is: "Is this connector J or P?" It's a question that has plagued engineers, hobbyists, and anyone who's ever tried to assemble something from IKEA. Don't worry, you're not alone. Figuring out the difference can feel like trying to understand hieroglyphics, but with a little guidance, we can crack the code.
The truth is, without more context, it's impossible to definitively say whether a connector should be designated "J" or "P". These letters usually aren't inherent properties of the connector itself. They are generally labels assigned within a specific schematic, wiring diagram, or piece of documentation. They act like internal nicknames within a larger system.
Think of it like this: you might call your favorite coffee mug "Big Blue," but someone else might call it "My Morning Miracle." The mug itself doesn't inherently know it's called Big Blue. The name is just a convention used within your own context. Similarly, "J" and "P" are contextual labels for connectors.

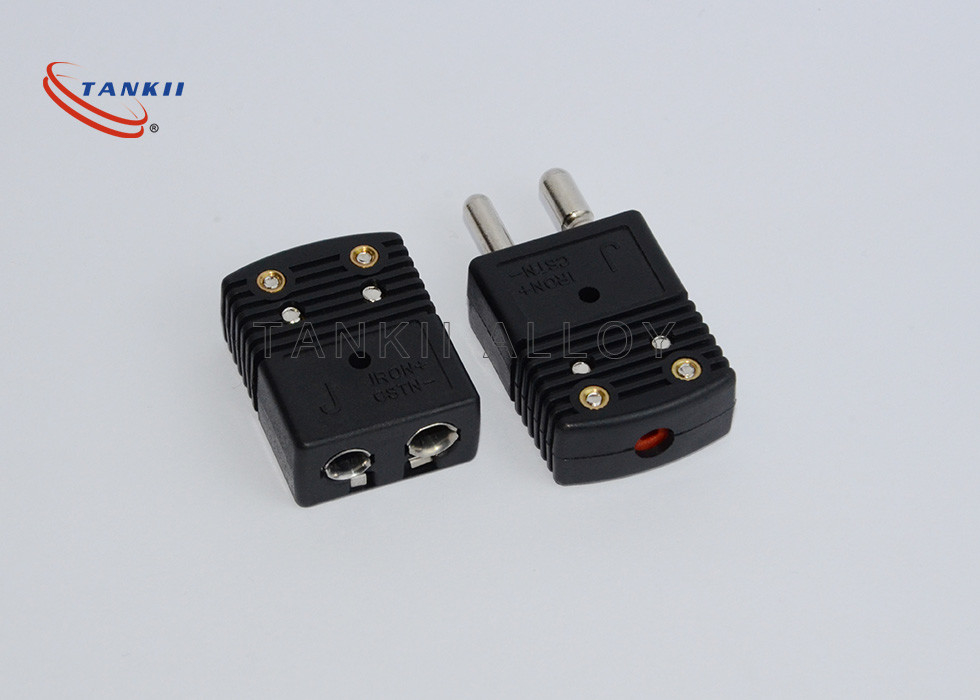

However, there are some common (though not universal!) conventions that might give you a hint. "J" is often, but not always, used to designate a jack or a female connector, while "P" might stand for plug or a male connector. But this is not a hard and fast rule, so don't bet your paycheck on it!
